Tiltindicator
发布时间:2023-03-31    浏览次数:

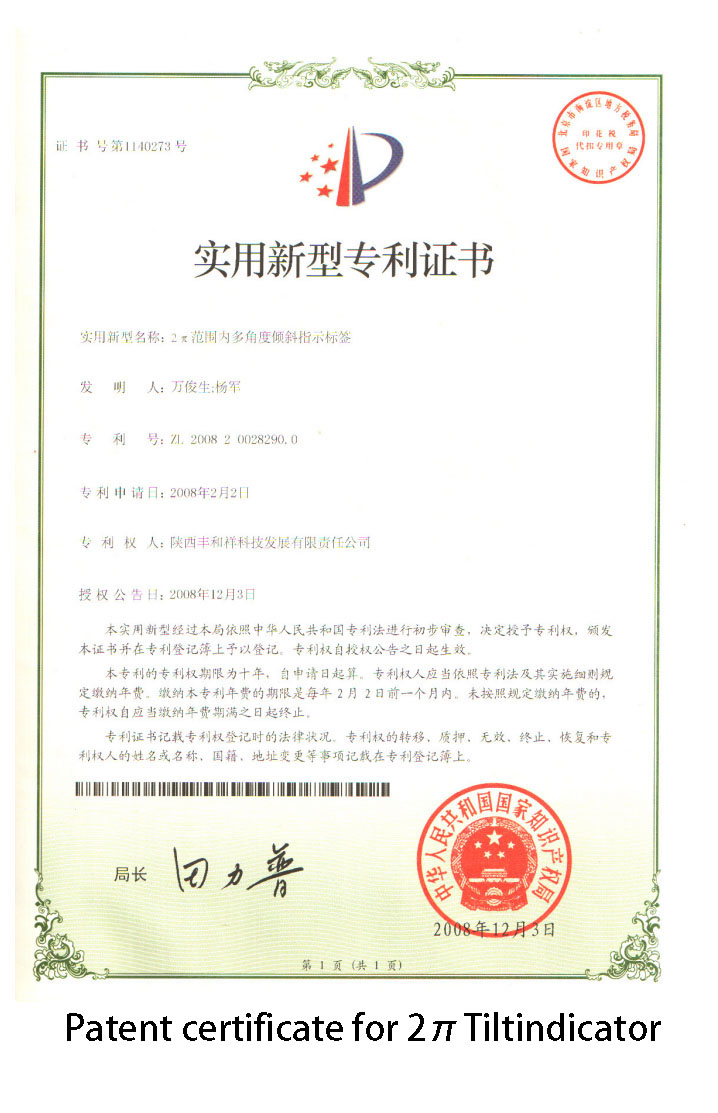

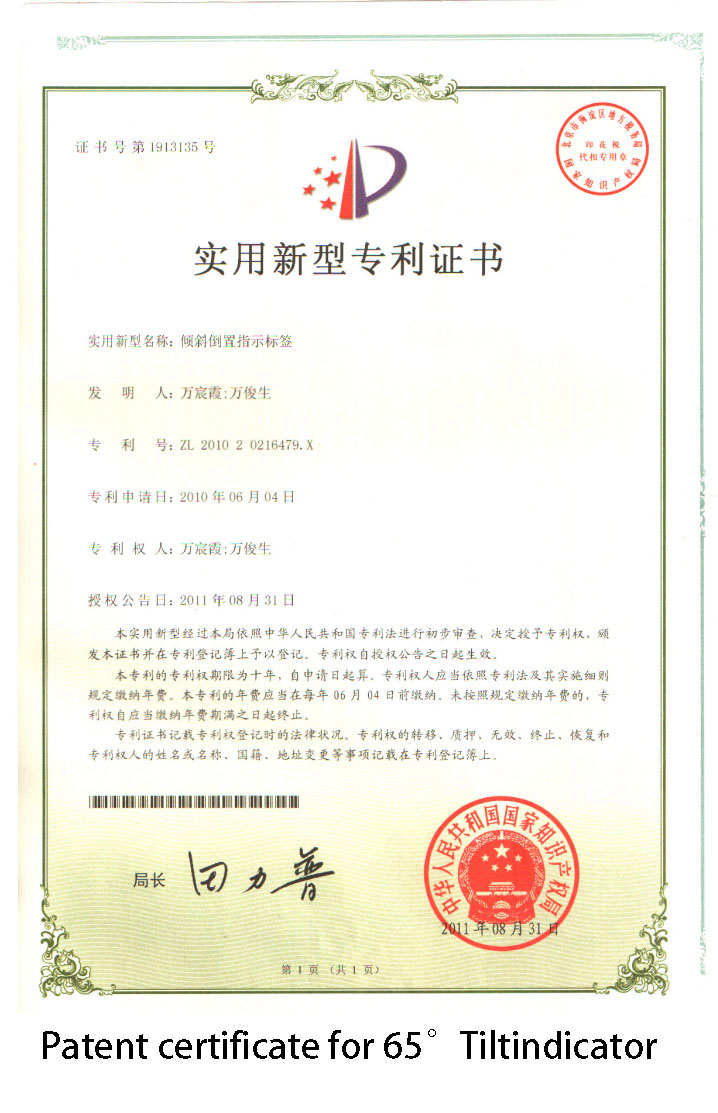

Our Company produces and sells TILTINDICATOR. They are two types:65°and 2π. They are specially produced as logistics labels for safety shipping. The "TILTINDICATOR" are a most popular warning label in logistics applications. The both products were applied patents in China.

The "TILTINDICATOR" are a most popular warning label in logistics applications. Labels ensure that your shipment is carefully handled from the moment it leaves your premises, protecting your products.


TILTINDICATOR

TiltindicatorThe product 2πTILTINDICAOR is actually three separate registers in a single indicator unit. One register indicates exact angular amount of left tilt endured. The second register indicates exact angular amount of right tilt endured and the third register indicates whether or not the unit was completely inverted (total overturn). Together with the three registers of a TILTINDICATOR unit provide inexpensive 360° tilt monitoring for the entire duration of the shipping period and an unalterable record of damaging incidents.

TiltindicatorThe product  65°TILTINIDCATOR can monitor three direction tiltleft side tilt65°),right side tilt65°) and total overturn.

TILTINDICATOR are a reliable and affordable solution to monitoring and controlling the shipment of following items: Art/sculpture, Telecommunication equipment, Heavy machinery, Furniture, Computer systems, Batteries, Plasma & LCD screens, Liquids, Copiers, Printers, Scanners and other Heavy instruments.

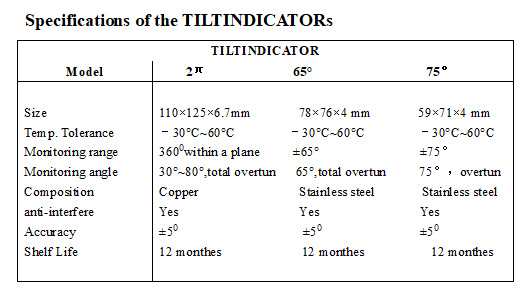

Specifications of SHOCKINDICATOR and TILTINDICATOR

TILTINDICATOR

Model

2π                             65°

Size

Temp. Tolerance

Monitoring range

Monitoring angle

Composition

anti-interfere

Accuracy

Shelf Life

110×125×6.7mm              78×76×3 mm

30°C~60°C                  30°C~60°C

3600within a plane           ±65°

30°~80°,total overtun       65°,total overtun

Copper                            Stainless steel

Yes                                  Yes

±50                                ±50

12 months                      12 months
